Panel Specifications


Screen Size

Resolution

Bit Depth (Color)

Contrast Ratio

Backlight

Pixel Efficiency

Max Luminance

Viewing Angle

24.5″

1920×1080

10bit (1.073 Billion Colors)

> 5000:1

N/A

99.999%

> 300nits / L40

179°

Panel Specifications

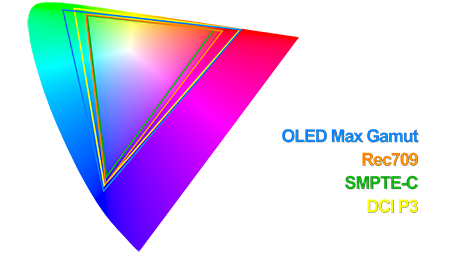

Max Native Color Gamut

Inputs


1 x DVI-D

2 x BNC

1 x DP

DVI Digital

3Gbps/HD/SD-SDI

DisplayPort

Outputs


2 x BNC

2 x BNC

3Gbps/HD/SD-SDI

2nd Monitor Outputs (Can Mirror On Screen View, Apply LUT, etc.)

Supported SDI Formats


ITU-R BT.656 (PAL)

SMPTE-125M

SMPTE-274M

576i (50)

480i (59.94)

1080i (60/59.94/50)
1080p (30/29.97/25/24/24PsF/23.98/23.98PsF)

SMPTE-296M

2K

720p (60/59.94/50/30/29/25/24/23.98)

2048×1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)

SMPTE-372M

1080p (50/59.94/60) 4:2:2 YCbCr, RGB
1080i (29.97/25/24/23.98) 4:4:4 YCbCr, RGB
1080p (30/29.97/25/24/23.98) 4:4:4 YCbCr, RGB
720p (60/59.94/50) 4:4:4 YCbCr, RGB

SMPTE-425M-AB

  • Level A & Level B supported
  • Level B supports 2 x SMPTE
    292M image format mapping
    372M image format mapping
  • RGB, YCbCr, & XYZ supported

12 & 10bit 4:2:2 1920x1080p (60/59.94/50)
4:4:4 1280x720p (60/59.94/50/30/29.97/25/24/23.98)
12 & 10bit 4:4:4 1920x1080i (60/59.94/50)
12 & 10bit 4:4:4 1920x1080p (30/29.97/25/24/24PsF/23.98/23.98PsF)
12 & 10bit 2k (2048×1080) (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
12 & 10bit 2K (2048×1080) (60p/59.94p/50p/48p/47.95p)
*XYZ mapped to Selected Color Gamut on Color Management Menu

Supported DVI Formats


DVI-Analog & DVI-Digital

VGA (640×480), NTSC (720×480), SVGA (800×600), XGA (1024×768), SXGA (1280×1024)

DVI Digital Only

1280×720, 1440×900, 1920×1080

Audio


Audio Disembedding

Audio Level Meters

Internal Speakers

Audio In (Mini-Jack)

Audio Out (Mini-Jack)

Yes

Yes

2

1

1

Features


Rack Mount Kit

Desktop Stand

External Mounting Points

VESA to Light Stand Mount

Carrying Case with Integrated Hood

Clear Protective Cover

Scopes

Measurement Function

Timecode Display (SD/HD-SDI)

Color Fidelity Engine

1:1 Pixel Mapping

Blue Only & Mono Mode

Side by Side Monitoring

3D LUT Color Space Selection

Color Temperature Select

Gamma Selection

Standard

Standard

100mm VESA

Optional

FSI Solutions CH25

Optional

Yes

Yes

LTC, VITC 1, VITC 2

CFE3

Yes

Yes

Yes

SMPTE C/EBU/REC709/REC2020 Emulation/DCI P3/USER

3200K, 5000K, 5600K, 6500K, 9300K

1.0 / 1.8 / 2.0 / 2.2 / 2.35 / 2.4 / 2.6 / 2.8

Power


AC Input

DC Input

Battery Plate

Power Requirement

DC Power Consumption (Appx.)

IEC / C14

4 PIN XLR

Optional

100~240 VAC / 12~24 VDC

50W

Physical Characteristics


Weight (without stand)

Weight with Basic Desktop Stand

Weight in Carrying Case with Hood (Optional)

Chassis

Dimensional Drawing

17 lbs (7.7 Kg)

19.2 lbs (8.7 Kg)

28.2 lbs (12.8 Kg)

Aluminum Frame

PDF
