XM311K

31″ 4K HDR 主控级监视器

>XM311K是一款31英寸真正的4K分辨率HDR和SDR参考主控监视器,配备专业的12G SDI输入。XM311K可作为杜比视界的主监,其峰值亮度为1000尼特,支持PQ和HLG两种EOTF曲线,多种可选色域,超过1,000,000:1的对比度,种种亮点使XM311K成为各种高标准HDR工作流程的理想选择。


现场色彩管理

XM311K可直接与LiveGrade Pro、Prelight、FireDay和FirePlay连接,来实时进行色彩操控,无需额外设置4K LUT盒子。

多机位监看

XM311K是多机位监看的理想选择,它支持4路同步锁相的高清信号的平行监看。此外,还可根据需要对某路信号全屏监看。

连接性

通过单根12G SDI线便可为监视器提供4K和UHD信号。支持2SI和四分法模式(Square Division)基础上的其它变体,如四路1.5G和3G SDI连接,因此可兼容几乎任何类型的4K或UHD输出。XM311K支持先进的12位4:4:4 YCbCr、RGB和XYZ信号,区别于其它中低端监看解决方案。

XM311K可环出未经调色的12G/6G和实时下变换的3G或1.5G输出信号,这点是它的独特之处。任何输入的单路4K或UHD信号都可转换为2K或HD输出,给下游高清监视器或示波器使用,无需添加任何其它下变换设备。

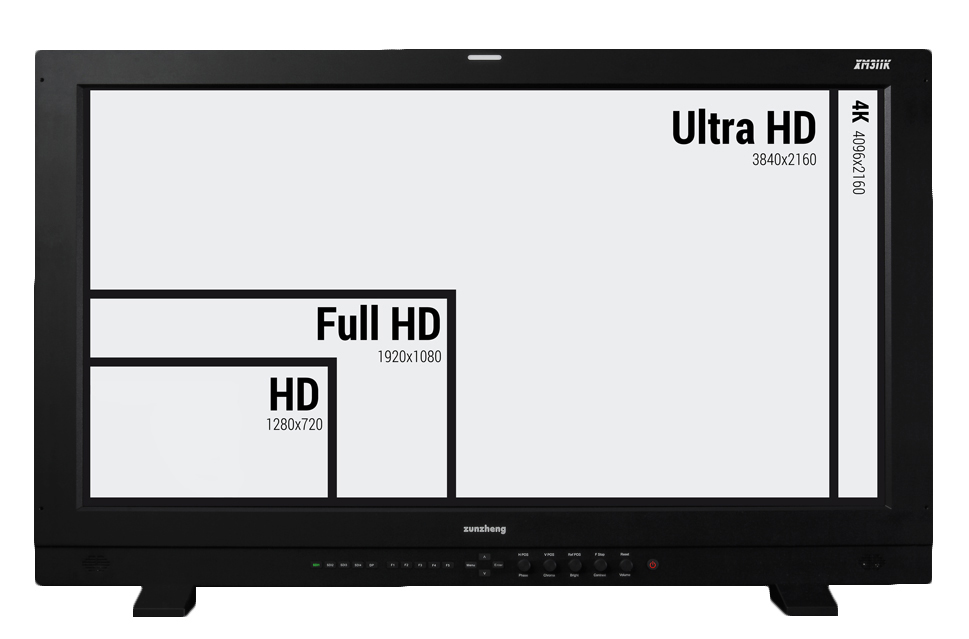

原生4K分辨率

XM311K是真4K分辨率监视器(4096 x 2160),支持HD、UHD和4K内容的全屏显示。

示波器

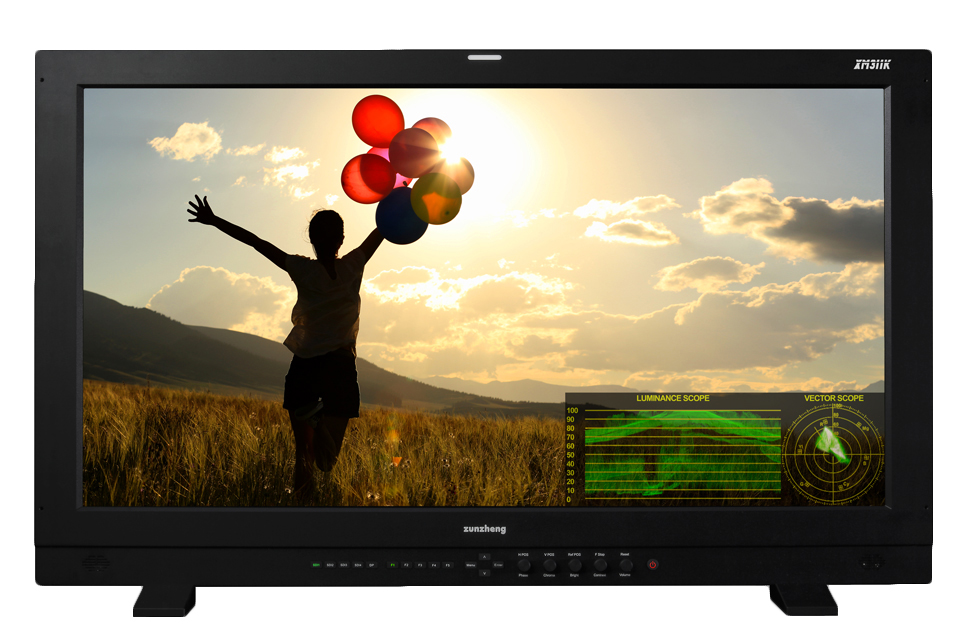

XM311K配备了兼容4K信号的实时亮度波形和矢量示波器。

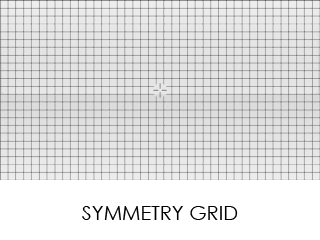

标记功能

多种标准标记尺寸和安全范围可供您选择,有线条、半透明和不透明遮幅三种显示模式,三种模式的线条或遮幅颜色都可选择。

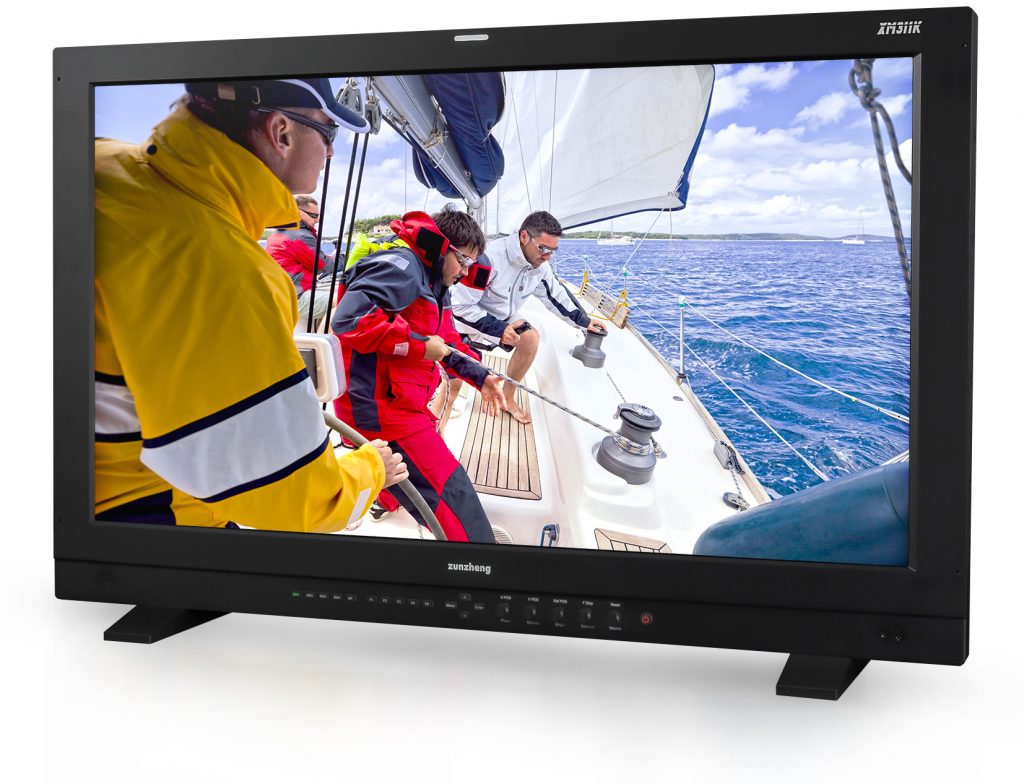

31″ 4K Mastering Monitor

The XM311K is a 31″ true 4K resolution HDR and SDR reference master monitor equipped with professional 12Gbps SDI inputs. The XM311K qualifies as a Dolby Vision mastering monitor. A fullscreen peak luminance of 1,000cd/m2, support for both PQ and HLG EOTFs, multiple color gamut selections, and a contrast ratio of 1,000,000:1 make the XM311K ideal for a wide variety of demanding HDR workflows.

HDR Compatibility Rating: Mastering

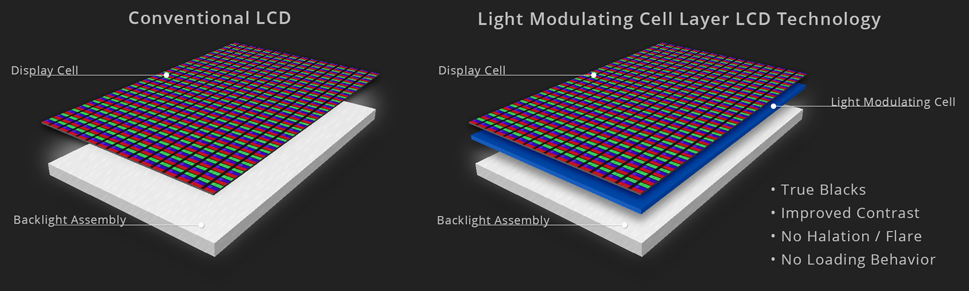

Light Modulating Cell Layer

LMCL is a groundbreaking new LCD technology that introduces an independently controllable layer of light modulating cells between the backlight and traditional display cell. This allows for greatly expanded individual pixel level control of light intensity resulting in several key benefits compared to traditional LCDs including truer black levels, much higher contrast ratios, no halation / flare artifacts, and no loading behavior. Compared to OLED technology LMCL has the distinct benefit of avoiding burn-in as well as being able to maintain consistent peak luminance regardless of overall scene brightness.

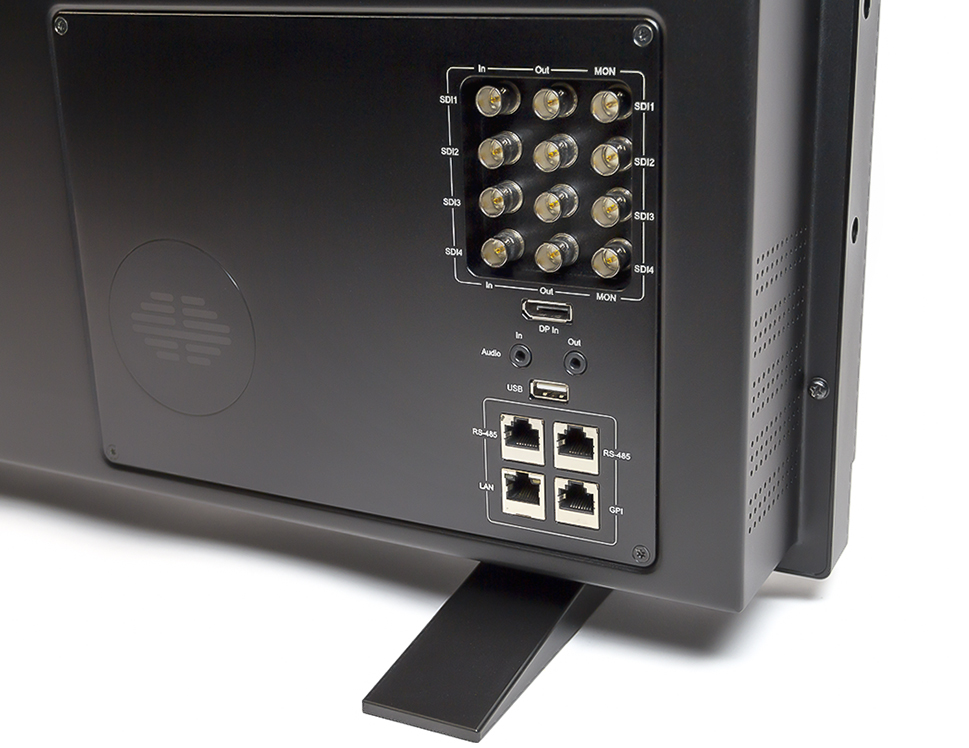

Connectivity

12Gbps SDI connections greatly simplify room design by allowing you to feed 4K and UHD signals to the display over a single cable. Quad 1.5Gbps and 3Gbps SDI connectivity are also supported in both 2SI and Square Division based variations ensuring compatibility with practically any type of 4K or UHD output. The XM311K supports advanced 12bit 4:4:4 YCbCr, RGB, and XYZ signals setting it apart from less advanced monitoring solutions.

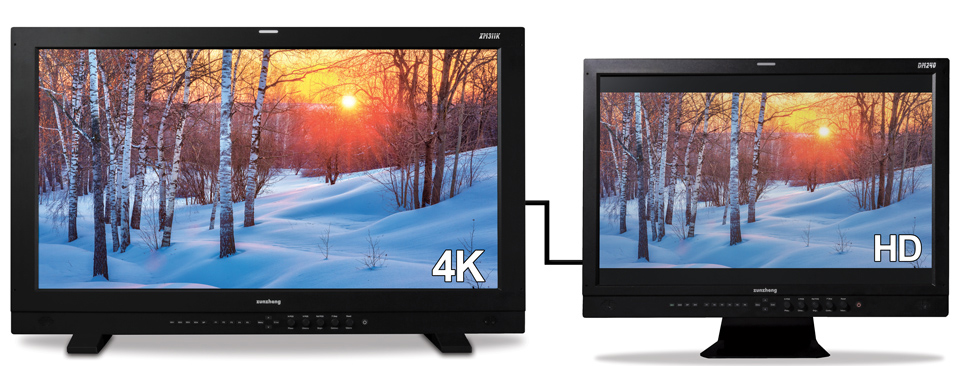

The XM311K features the unique ability to simultaneously supply a clean 12G / 6G loop through and real-time down converted 3G or 1.5G output. Any incoming single link 4K or UHD signals can be converted to 2K or HD outputs for downstream HD monitors or scopes, all without needing any standalone down conversion equipment.


Native 4K Resolution

The XM311K is a true 4K resolution monitor (4096×2160) that supports full screen viewing of HD, Ultra HD, and 4K content.

Advanced Signal Status Detection

XM series monitors automatically read payload ID (VPID) information embedded in SDI signals and lock to the signal accordingly. This information can also be temporarily displayed whenever a format change is detected so that you can be sure that what you intend to output to the monitor is what the monitor receives.

A VPID override toggle is also provided allowing users to manually configure the monitor in instances where the payload ID may be missing or incorrect.

Two Deinterlace Options

View interlaced video with correct field order or combine fields and display interlaced signals as progressive.

HD To UHD Upscaling

HD content is displayed without interpolation by representing every pixel from the incoming source as 4 pixels on the panel. This allows for accurate signal representation on screen by avoiding interpolation methods that might mask or omit image issues.


On-set Color Management

The XM311K features direct compatibility with on-set color applications like LiveGrade Pro, Prelight, FireDay, and FirePlay for real-time color manipulation without the need for a standalone 4K LUT box.

XM311K
4K HDR 主控级监视器

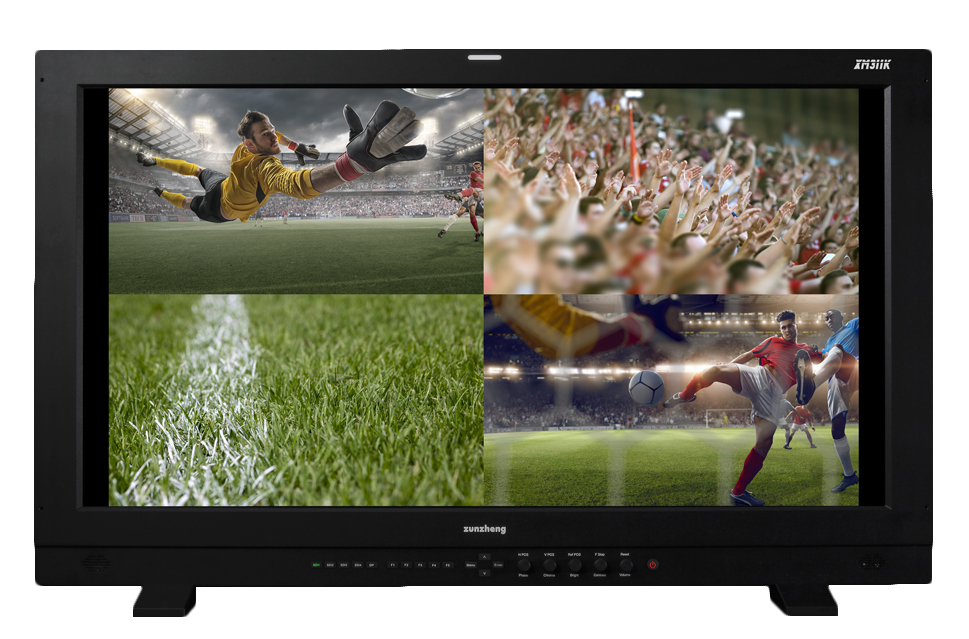

Multi-cam Monitoring

The XM311K is ideal for multi-cam monitoring applications with support for simultaneous viewing of up to 4 genlocked HD feeds and the additional ability to view any feed full screen as needed.

Scopes

The XM311K comes equipped with 4K compatible real-time waveform and vector scope.

Markers

Choose from a wide assortment of standard markers and safety areas that can be displayed as lines, translucent overlays, or solid overlays. Lines and overlays have selectable colors for instant customization.

Advanced LUT Processing Options

XM Series monitors have the unique ability to process 3D LUTs using your choice of trilinear or tetrahedral interpolation. Trilinear LUT interpolation is very common and having this option allows you to process LUTs as they will frequently be seen elsewhere. More advanced tetrahedral LUT interpolation, while not as ubiquitous, allows for a higher degree of precision with better on screen performance.


Trilinear

Tetrahedral
